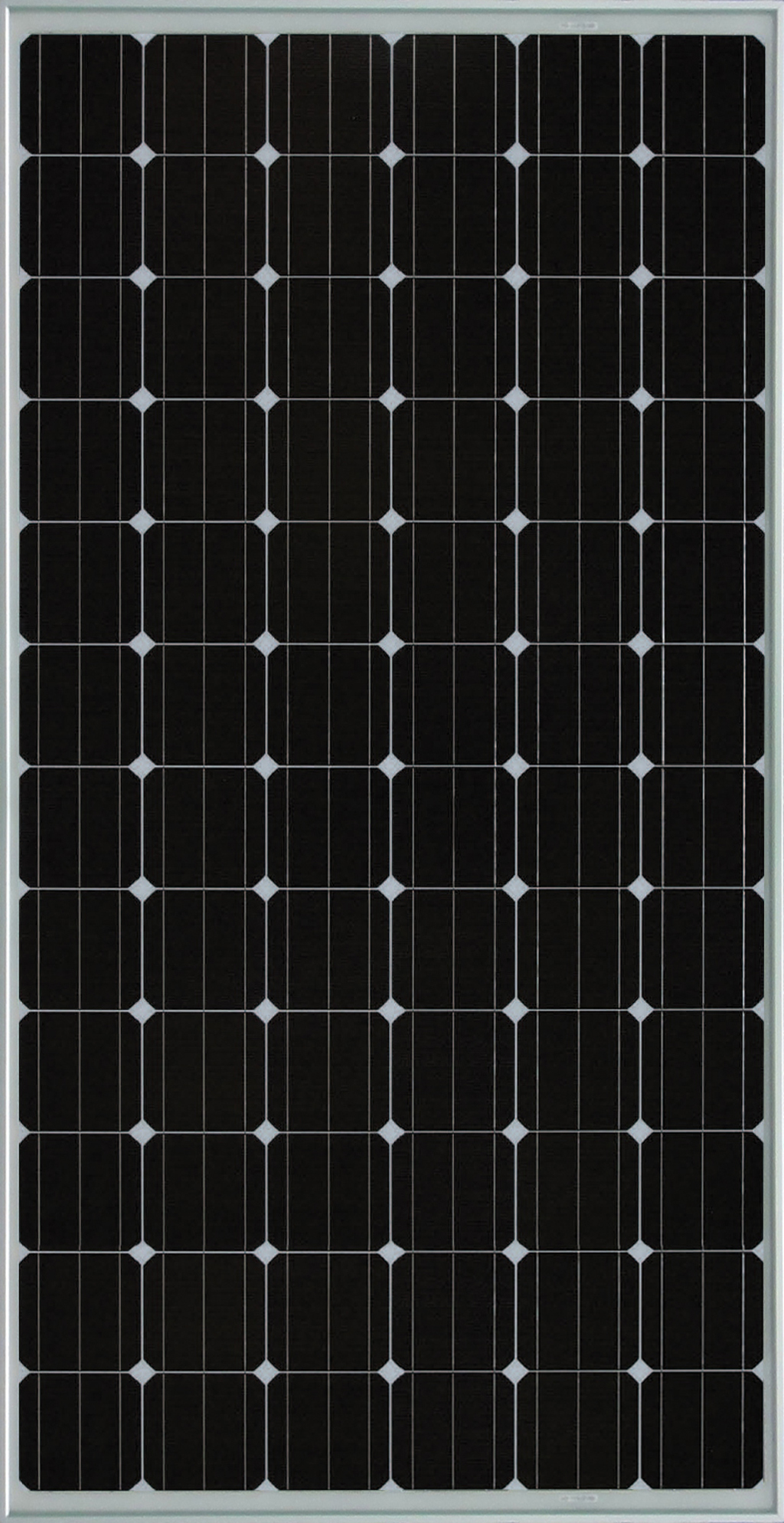

Solar Module: Mono
Maximum power (Wp): 250
Maximum power voltage (V): 31.3
Maximum power current (A): 7.99
Open circuit voltage (V): 37.7
Short circuit current (A): 8.67
Number of cells (Pcs): 60
Size of module (mm): 1640×992×50
Maximum system voltage (V): 1000VDC
Temperature coefficients of Isc (%): +0.033/℃
Temperature coefficients of Voc (%): -0.241/℃
Temperature coefficients of Pm (%): -0.370/℃
Temperature Range: -40℃～+85℃
Tolerance Wattage (e.g. +/-3%): 0~3%
Allowable Hail Load: Maximum diameter of 25mm with impact speed 23m/s
Weight per piece (kg): 19.6
Connectors and Cables Type: 2 Pfg 1169 1×4mm2
Length of Cables (mm): 900mm
Cell Efficiency (%): 17.4%
Module Efficiency (%): 15.4%
Frame (Material, Corners, etc.): Aluminum 6063T5
Standard Test Conditions: AM1.5 1000W/m2 25’C
Warranty: 25 years life and 25 years 80% of power
FF (%): ≥76%
Packing: 2pcs/carton
