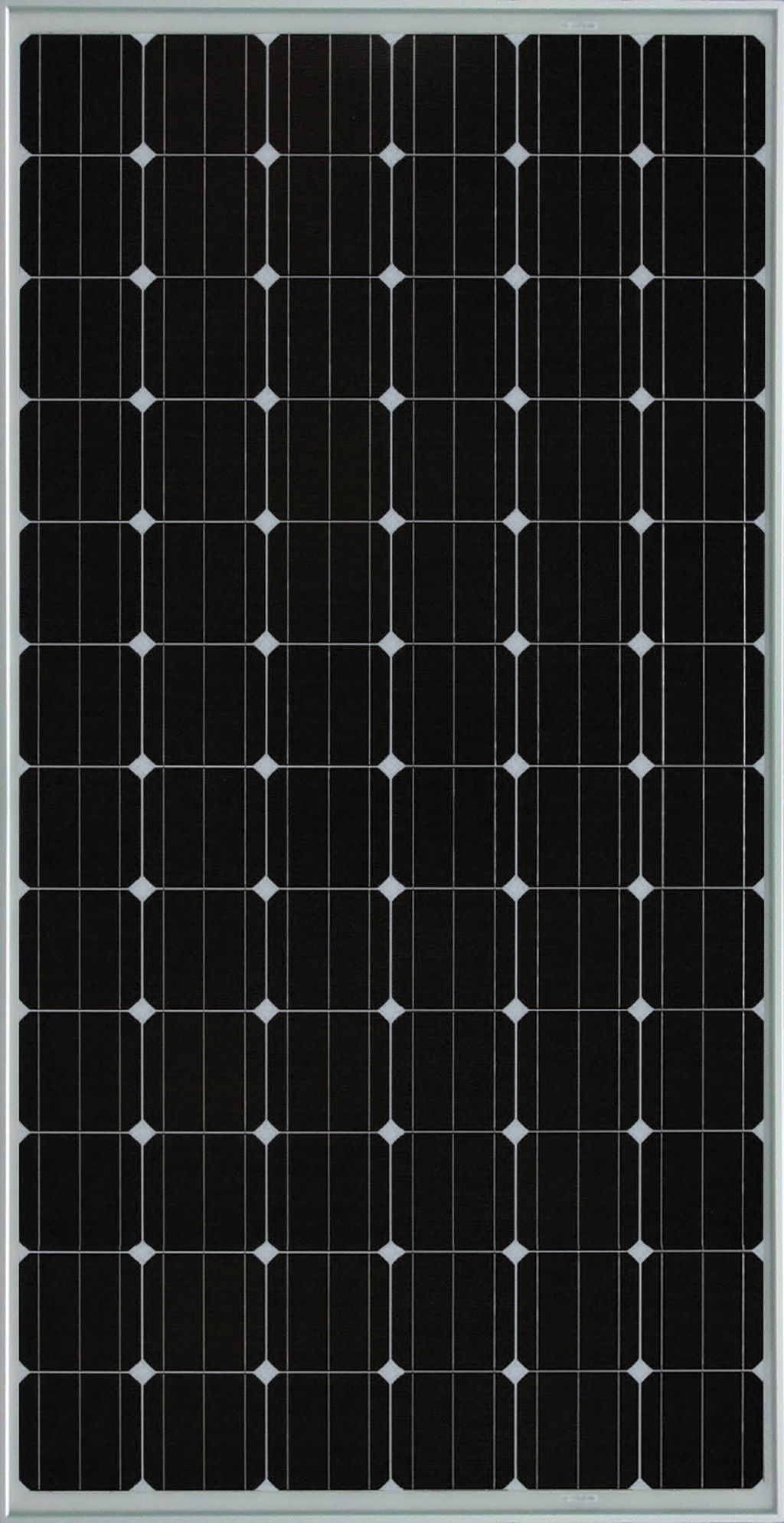

Solar Module: Mono
Maximum power (Wp): 200
Maximum power voltage (V): 37.9
Maximum power current (A): 5.28
Open circuit voltage (V): 45.4
Short circuit current (A): 5.81
Number of cells (Pcs): 72
Size of module (mm): 1580×808×50
Maximum system voltage (V): 1000VDC
Temperature coefficients of Isc (%): +0.033/℃
Temperature coefficients of Voc (%): -0.241/℃
Temperature coefficients of Pm (%): -0.370/℃
Temperature Range: -40℃～+85℃
Tolerance Wattage (e.g. +/-3%): 0~3%
Allowable Hail Load: Maximum diameter of 25mm with impact speed 23m/s
Weight per piece (kg): 16.2
Connectors and Cables Type: 2 Pfg 1169 1×4mm2
Length of Cables (mm): 900mm
Cell Efficiency (%): 18.0%
Module Efficiency (%): 15.7%
Frame (Material, Corners, etc.): Aluminum 6063T5
Standard Test Conditions: AM1.5 1000W/m2 25’C
Warranty: 25 years life and 25 years 80% of power
FF (%): ≥76%
Packing: 2pcs/carton
